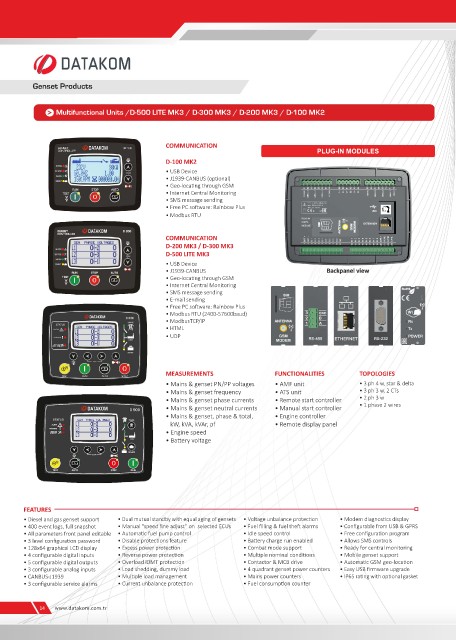

Page 14 - catalogue-2024

Genset Products

Multifunctional Units /D-500 LITE MK3 / D-300 MK3 / D-200 MK3 / D-100 MK2

COMMUNICATION
D-100 MK2
• USB Device
• J1939-CANBUS (optional)
• Geo-locating through GSM
• Internet Central Monitoring
• SMS message sending
• Free PC software: Rainbow Plus
• Modbus RTU

COMMUNICATION
D-200 MK3 / D-300 MK3
D-500 LITE MK3
• USB Device
• J1939-CANBUS
• Geo-locating through GSM
• Internet Central Monitoring
• SMS message sending
• E-mail sending
• Free PC software: Rainbow Plus
• Modbus RTU (2400-57600baud)
• ModbusTCP/IP Rx
• HTML Tx
• UDP POWER

MEASUREMENTS FUNCTIONALITIES TOPOLOGIES
• Mains & genset PN/PP voltages • AMF unit • 3 ph 4 w, star & delta
• Mains & genset frequency • ATS unit • 3 ph 3 w, 2 CTs
• Mains & genset phase currents • Remote start controller • 2 ph 3 w
• Mains & genset neutral currents • Manual start controller • 1 phase 2 wires
• Mains & genset, phase & total, • Engine controller
kW, kVA, kVAr, pf • Remote display panel
• Engine speed
• Battery voltage

FEATURES
• Diesel and gas genset support • Dual mutual standby with equal aging of gensets • Voltage unbalance protection • Modem diagnostics display
• 400 event logs, full snapshot • Manual “speed fine adjust” on selected ECUs • Fuel filling & fuel theft alarms • Configurable from USB & GPRS
• All parameters front panel editable • Automatic fuel pump control • Idle speed control • Free configuration program
• 3 level configuration password • Disable protections feature • Battery charge run enabled • Allows SMS controls
• 128x64 graphical LCD display • Excess power protection • Combat mode support • Ready for central monitoring
• 4 configurable digital inputs • Reverse power protection • Multiple nominal conditions • Mobile genset support
• 5 configurable digital outputs • Overload IDMT protection • Contactor & MCB drive • Automatic GSM geo-location
• 3 configurable analog inputs • Load shedding, dummy load • 4 quadrant genset power counters • Easy USB firmware upgrade
• CANBUS-J1939 • Multiple load management • Mains power counters • IP65 rating with optional gasket
• 3 configurable service alarms • Current unbalance protection • Fuel consumption counter
