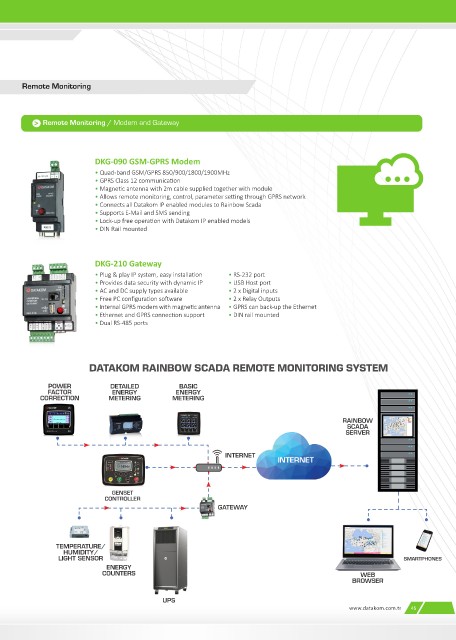

Page 45 - catalogue-2024
P. 45

Remote Monitoring




             Remote Monitoring / Modem and Gateway




                           DKG-090 GSM-GPRS Modem
                           • Quad-band GSM/GPRS 850/900/1800/1900MHz
                           • GPRS Class 12 communication
                           • Magnetic antenna with 2m cable supplied together with module
                           • Allows remote monitoring, control, parameter setting through GPRS network
                           • Connects all Datakom IP enabled modules to Rainbow Scada
                           • Supports E-Mail and SMS sending
                           • Lock-up free operation with Datakom IP enabled models
                           • DIN Rail mounted



                           DKG-210 Gateway
                           • Plug & play IP system, easy installation  • RS-232 port
                           • Provides data security with dynamic IP  • USB Host port
                           • AC and DC supply types available  • 2 x Digital inputs
                           • Free PC configuration software   • 2 x Relay Outputs
                           • Internal GPRS modem with magnetic antenna  • GPRS can back-up the Ethernet
                           • Ethernet and GPRS connection support  • DIN rail mounted
                           • Dual RS-485 ports





                         DATAKOM RAINBOW SCADA REMOTE MONITORING SYSTEM

              POWER            DETAILED          BASIC
              FACTOR           ENERGY           ENERGY
            CORRECTION        METERING         METERING


                                                                                             RAINBOW
                                                                                              SCADA
                                                                                              SERVER


                                                              INTERNET
                                                                            INTERNET



                               GENSET
                             CONTROLLER
                                                            GATEWAY





                TEMPERATURE/
                  HUMIDITY/
                 LIGHT SENSOR                                                                                SMARTPHONES
                              ENERGY
                            COUNTERS                                                              WEB
                                                                                                BROWSER

                                             UPS
