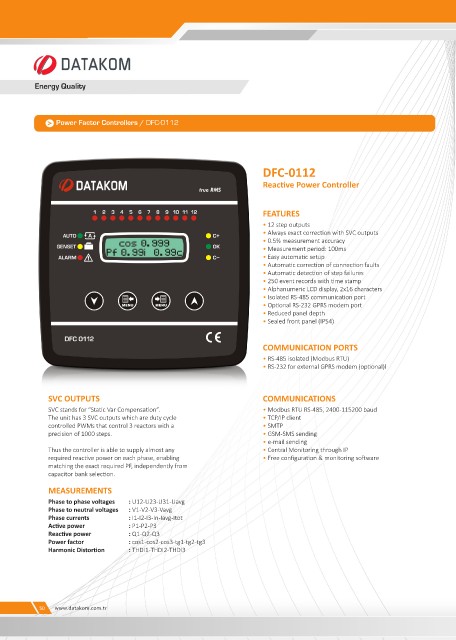

Page 50 - catalogue-2024

Energy Quality

Power Factor Controllers / DFC-0112

DFC-0112

Reactive Power Controller

FEATURES
• 12 step outputs
• Always exact correction with SVC outputs
• 0.5% measurement accuracy
• Measurement period: 100ms
• Easy automatic setup
• Automatic correction of connection faults
• Automatic detection of step failures
• 250 event records with time stamp
• Alphanumeric LCD display, 2x16 characters
• Isolated RS-485 communication port
• Optional RS-232 GPRS modem port
• Reduced panel depth
• Sealed front panel (IP54)

COMMUNICATION PORTS
• RS-485 isolated (Modbus RTU)
• RS-232 for external GPRS modem (optional)l

SVC OUTPUTS COMMUNICATIONS
SVC stands for “Static Var Compensation”. • Modbus RTU RS-485, 2400-115200 baud
The unit has 3 SVC outputs which are duty cycle • TCP/IP client
controlled PWMs that control 3 reactors with a • SMTP
precision of 1000 steps. • GSM-SMS sending
• e-mail sending
Thus the controller is able to supply almost any • Central Monitoring through IP
required reactive power on each phase, enabling • Free configuration & monitoring software
matching the exact required PF, independently from
capacitor bank selection.
MEASUREMENTS
Phase to phase voltages : U12-U23-U31-Uavg
Phase to neutral voltages : V1-V2-V3-Vavg
Phase currents : I1-I2-I3-In-Iavg-Itot
Active power : P1-P2-P3
Reactive power : Q1-Q2-Q3
Power factor : cos1-cos2-cos3-tg1-tg2-tg3
Harmonic Distortion : THDI1-THDI2-THDI3
