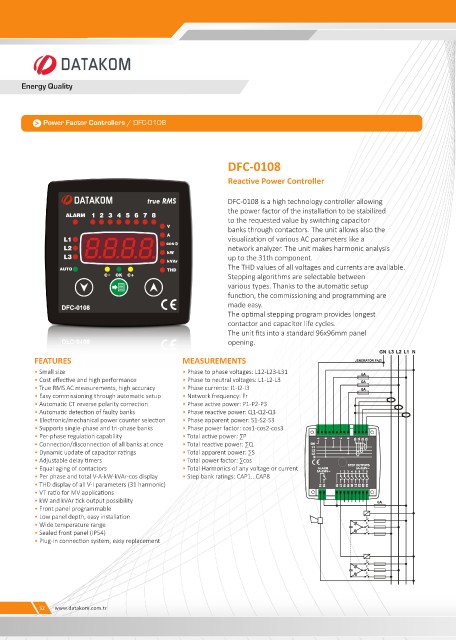

P. 52

Energy Quality




             Power Factor Controllers / DFC-0108




                                                              DFC-0108

                                                              Reactive Power Controller


                                                              DFC-0108 is a high technology controller allowing
                                                              the power factor of the installation to be stabilized
                                                              to the requested value by switching capacitor
                                                              banks through contactors. The unit allows also the
                                                              visualization of various AC parameters like a
                                                              network analyzer. The unit makes harmonic analysis
                                                              up to the 31th component.
                                                              The THD values of all voltages and currents are available.
                                                              Stepping algorithms are selectable between
                                                              various types. Thanks to the automatic setup
                                                              function, the commissioning and programming are
                                                              made easy.
                                                              The optimal stepping program provides longest
                                                              contactor and capacitor life cycles.
                                                              The unit fits into a standard 96x96mm panel
                                                              opening.
          FEATURES                                MEASUREMENTS

          • Small size                            • Phase to phase voltages: L12-L23-L31
          • Cost effective and high performance   • Phase to neutral voltages: L1-L2-L3
          • True RMS AC measurements, high accuracy  • Phase currents: I1-I2-I3
          • Easy commissioning through automatic setup  • Network frequency: Fr
          • Automatic CT reverse polarity correction  • Phase active power: P1-P2-P3
          • Automatic detection of faulty banks   • Phase reactive power: Q1-Q2-Q3
          • Electronic/mechanical power counter selection  • Phase apparent power: S1-S2-S3
          • Supports single-phase and tri-phase banks  • Phase power factor: cos1-cos2-cos3
          • Per-phase regulation capability       • Total active power: ∑P
          • Connection/disconnection of all banks at once  • Total reactive power: ∑Q
          • Dynamic update of capacitor ratings   • Total apparent power: ∑S
          • Adjustable delay timers               • Total power factor: ∑cos
          • Equal aging of contactors             • Total Harmonics of any voltage or current
          • Per phase and total V-A-kW-kVAr-cos display  • Step bank ratings: CAP1...CAP8
          • THD display of all V-I parameters (31 harmonic)
          • VT ratio for MV applications
          • kW and kVAr tick output possibility
          • Front panel programmable
          • Low panel depth, easy installation
          • Wide temperature range
          • Sealed front panel (IP54)
          • Plug-in connection system, easy replacement









            52  www.datakom.com.tr
