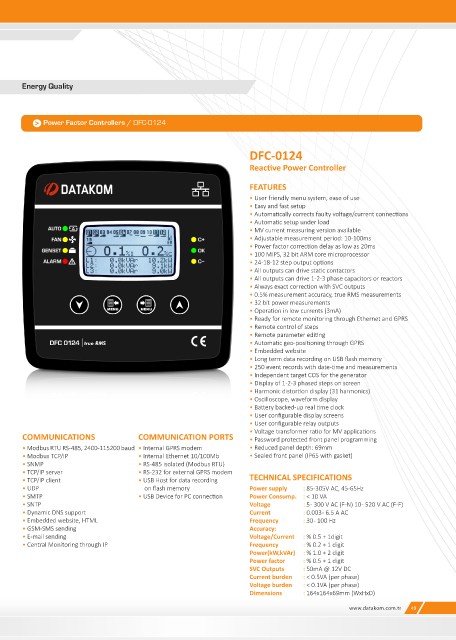

Energy Quality




             Power Factor Controllers / DFC-0124



                                                                    DFC-0124
                                                                    Reactive Power Controller

                                                                    FEATURES
                                                                    • User friendly menu system, ease of use
                                                                    • Easy and fast setup
                                                                    • Automatically corrects faulty voltage/current connections
                                                                    • Automatic setup under load
                                                                    • MV current measuring version available
                                                                    • Adjustable measurement period: 10-100ms
                                                                    • Power factor correction delay as low as 20ms
                                                                    • 100 MIPS, 32 bit ARM core microprocessor
                                                                    • 24-18-12 step output options
                                                                    • All outputs can drive static contactors
                                                                    • All outputs can drive 1-2-3 phase capacitors or reactors
                                                                    • Always exact correction with SVC outputs
                                                                    • 0.5% measurement accuracy, true RMS measurements
                                                                    • 32 bit power measurements
                                                                    • Operation in low currents (3mA)
                                                                    • Ready for remote monitoring through Ethernet and GPRS
                                                                    • Remote control of steps
                                                                    • Remote parameter editing
                                                                    • Automatic geo-positioning through GPRS
                                                                    • Embedded website
                                                                    • Long term data recording on USB flash memory
                                                                    • 250 event records with date-time and measurements
                                                                    • Independent target COS for the generator
                                                                    • Display of 1-2-3 phased steps on screen
                                                                    • Harmonic distortion display (31 harmonics)
                                                                    • Oscilloscope, waveform display
                                                                    • Battery backed-up real time clock
                                                                    • User configurable display screens
                                                                    • User configurable relay outputs
                                                                    • Voltage transformer ratio for MV applications
       COMMUNICATIONS                 COMMUNICATION PORTS           • Password protected front panel programming
       • Modbus RTU RS-485, 2400-115200 baud  • Internal GPRS modem  • Reduced panel depth: 69mm
       • Modbus TCP/IP                • Internal Ethernet 10/100Mb  • Sealed front panel (IP65 with gasket)
       • SNMP                         • RS-485 isolated (Modbus RTU)
       • TCP/IP server                • RS-232 for external GPRS modem
       • TCP/IP client                • USB Host for data recording   TECHNICAL SPECIFICATIONS
       • UDP                              on flash memory           Power supply   : 85-305V AC, 45-65Hz
       • SMTP                         • USB Device for PC connection  Power Consump.  : < 10 VA
       • SNTP                                                       Voltage       : 5 - 300 V AC (F-N) 10 - 520 V AC (F-F)
       • Dynamic DNS support                                        Current       : 0.003 - 6.5 A AC
       • Embedded website, HTML                                     Frequency     : 30 - 100 Hz
       • GSM-SMS sending                                            Accuracy:
       • E-mail sending                                             Voltage/Current   : % 0.5 + 1digit
       • Central Monitoring through IP                              Frequency     : % 0.2 + 1 digit
                                                                    Power(kW,kVAr)  : % 1.0 + 2 digit
                                                                    Power factor  : % 0.5 + 1 digit
                                                                    SVC Outputs   : 50mA @ 12V DC
                                                                    Current burden  : < 0.5VA (per phase)
                                                                    Voltage burden  : < 0.1VA (per phase)
                                                                    Dimensions    : 164x164x69mm (WxHxD)
