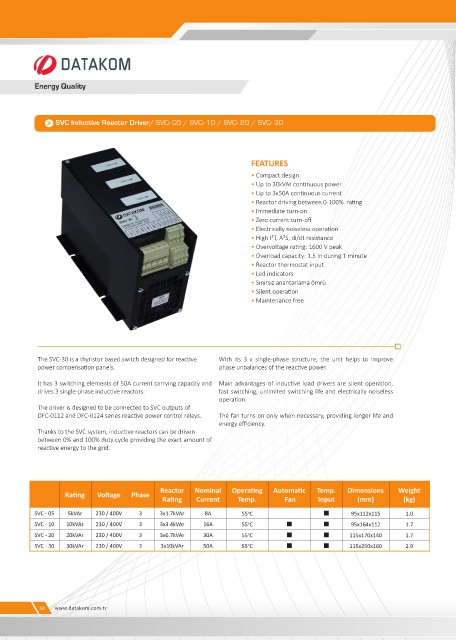

Page 54 - catalogue-2024
P. 54

Energy Quality




                SVC Inductive Reactor Driver/ SVC- 05 / SVC- 10 / SVC- 20 / SVC- 30




                                                                    FEATURES

                                                                    • Compact design
                                                                    • Up to 30kVAr continuous power
                                                                    • Up to 3x50A continuous current
                                                                    • Reactor driving between 0-100%  rating
                                                                    • Immediate turn-on
                                                                    • Zero current turn-off
                                                                    • Electrically noiseless operation
                                                                    • High I²T, A²S, di/dt resistance
                                                                    • Overvoltage rating: 1600 V peak
                                                                    • Overload capacity: 1.5 In during 1 minute
                                                                    • Reactor thermostat input
                                                                    • Led indicators
                                                                    • Sınırsız anahtarlama ömrü
                                                                    • Silent operation
                                                                    • Maintenance free








           The SVC-30 is a thyristor based switch designed for reactive   With  its  3  x  single-phase  structure,  the  unit  helps  to  improve
           power compensation panels.                       phase unbalances of the reactive power.

           It has 3 switching elements of 50A current carrying capacity and  Main advantages of inductive load drivers are silent operation,
           drives 3 single-phase inductive reactors.        fast switching, unlimited switching life and electrically noiseless
                                                            operation.
           The driver is designed to be connected to SVC outputs of
           DFC-0112 and DFC-0124 series reactive power control relays.  The fan turns on only when necessary, providing longer life and
                                                            energy efficiency.
           Thanks to the SVC system, inductive reactors can be driven
           between 0% and 100% duty cycle providing the exact amount of
           reactive energy to the grid.





                                            Reactor   Nominal   Operating   Automatic  Temp.   Dimensions   Weight
                   Rating  Voltage  Phase
                                             Rating   Current    Temp.        Fan     Input      (mm)        (kg)
          SVC - 05  5kVAr  230 / 400V  3    3x1.7kVAr   8A        55 C                  ■      95x112x115     1.0
                                                                    o
          SVC - 10  10kVAr  230 / 400V  3   3x3.4kVAr   16A       55 C        ■         ■      95x164x112     1.7
                                                                    o
          SVC - 20  20kVAr  230 / 400V  3   3x6.7kVAr   30A       55 C        ■         ■      115x170x140    1.7
                                                                    o
          SVC - 30  30kVAr  230 / 400V  3   3x10kVAr    50A       55 C        ■         ■      115x250x160    2.9
                                                                    o
