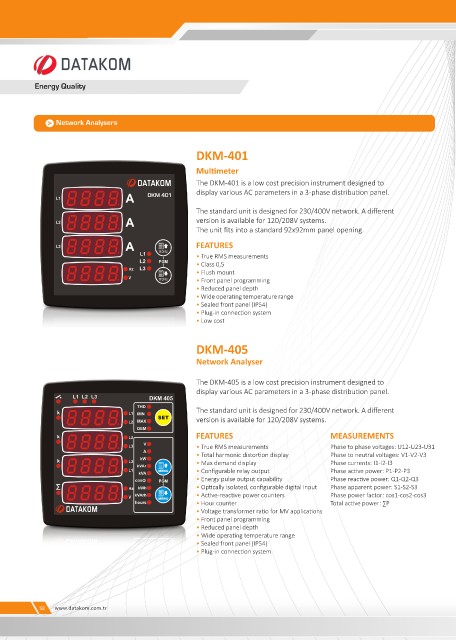

P. 58

Energy Quality




                Network Analysers


                                                      DKM-401

                                                      Multimeter

                                                      The DKM-401 is a low cost precision instrument designed to
                                                      display various AC parameters in a 3-phase distribution panel.


                                                      The standard unit is designed for 230/400V network. A different
                                                      version is available for 120/208V systems.
                                                      The unit fits into a standard 92x92mm panel opening.
                                                      FEATURES
                                                      • True RMS measurements
                                                      • Class 0,5
                                                      • Flush mount
                                                      • Front panel programming
                                                      • Reduced panel depth
                                                      • Wide operating temperature range
                                                      • Sealed front panel (IP54)
                                                      • Plug-in connection system
                                                      • Low cost


                                                      DKM-405

                                                      Network Analyser

                                                      The DKM-405 is a low cost precision instrument designed to
                                                      display various AC parameters in a 3-phase distribution panel.

                                                      The standard unit is designed for 230/400V network. A different
                                                      version is available for 120/208V systems.
                                                      FEATURES                            MEASUREMENTS
                                                      • True RMS measurements             Phase to phase voltages: U12-U23-U31
                                                      • Total harmonic distortion display  Phase to neutral voltages: V1-V2-V3
                                                      • Max demand display                Phase currents: I1-I2-I3
                                                      • Configurable relay output         Phase active power: P1-P2-P3
                                                      • Energy pulse output capability    Phase reactive power: Q1-Q2-Q3
                                                      • Optically isolated, configurable digital input  Phase apparent power: S1-S2-S3
                                                      • Active-reactive power counters    Phase power factor: cos1-cos2-cos3
                                                      • Hour counter                      Total active power: ∑P
                                                      • Voltage transformer ratio for MV applications
                                                      • Front panel programming
                                                      • Reduced panel depth
                                                      • Wide operating temperature range
                                                      • Sealed front panel (IP54)
                                                      • Plug-in connection system
