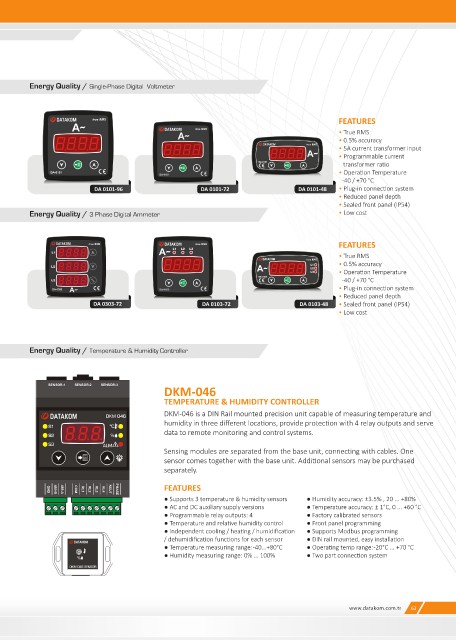

P. 63

Energy Quality / Single-Phase Digital  Voltmeter



                                                                                            FEATURES

                                                                                            • True RMS
                                                                                            • 0.5% accuracy
                                                                                            • 5A current transformer input
                                                                                            • Programmable current
                                                                                               transformer ratio
                                                                                            • Operation Temperature
                                                                                               -40 / +70 °C
                          DA 0101-96                   DA 0101-72                DA 0101-48  • Plug-in connection system
                                                                                            • Reduced panel depth
                                                                                            • Sealed front panel (IP54)
         Energy Quality / 3 Phase Digital Ammeter                                           • Low cost



                                                                                            FEATURES
                                                                                            • True RMS
                                                                                            • 0.5% accuracy
                                                                                            • Operation Temperature
                                                                                               -40 / +70 °C
                                                                                            • Plug-in connection system
                                                                                            • Reduced panel depth
                          DA 0303-72                   DA 0103-72                DA 0103-48  • Sealed front panel (IP54)
                                                                                            • Low cost




         Energy Quality / Temperature & Humidity Controller




                                             DKM-046
                                             TEMPERATURE & HUMIDITY CONTROLLER
                                             DKM-046 is a DIN Rail mounted precision unit capable of measuring temperature and
                                             humidity in three different locations, provide protection with 4 relay outputs and serve
                                             data to remote monitoring and control systems.

                                             Sensing modules are separated from the base unit, connecting with cables. One
                                             sensor comes together with the base unit. Additional sensors may be purchased
                                             separately.

                                             FEATURES
                                             ● Supports 3 temperature & humidity sensors  ● Humidity accuracy: ±3.5% , 20 ... +80%
                                             ● AC and DC auxiliary supply versions  ● Temperature accuracy: ± 1°C, 0 ... +60 °C
                                             ● Programmable relay outputs: 4       ● Factory calibrated sensors
                                             ● Temperature and relative humidity control  ● Front panel programming
                                             ● Independent cooling / heating / humidification  ● Supports Modbus programming
                                             / dehumidification functions for each sensor  ● DIN rail mounted, easy installation
                                             ● Temperature measuring range: -40...+80°C  ● Operating temp range: -20°C ... +70 °C
                                             ● Humidity measuring range: 0% ... 100%  ● Two part connection system








                                                                                               www.datakom.com.tr  63
