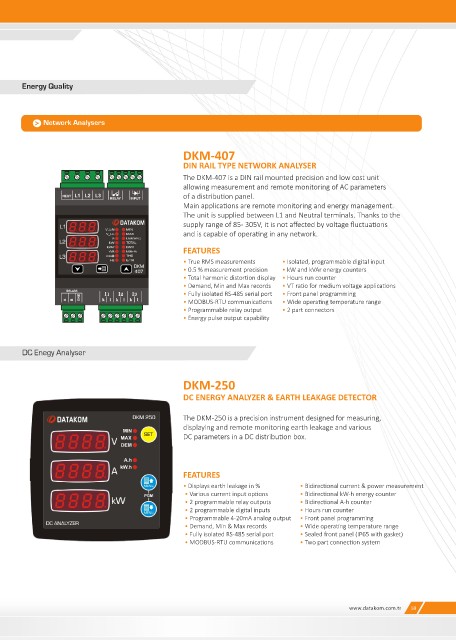

P. 59

Energy Quality




             Network Analysers


                                                  DKM-407

                                                  DIN RAIL TYPE NETWORK ANALYSER
                                                  The DKM-407 is a DIN rail mounted precision and low cost unit
                                                  allowing measurement and remote monitoring of AC parameters
                                                  of a distribution panel.
                                                  Main applications are remote monitoring and energy management.
                                                  The unit is supplied between L1 and Neutral terminals. Thanks to the
                                                  supply range of 85- 305V, it is not affected by voltage fluctuations
                                                  and is capable of operating in any network.

                                                  FEATURES
                                                  • True RMS measurements    • Isolated, programmable digital input
                                                  • 0.5 % measurement precision  • kW and kVAr energy counters
                                                  • Total harmonic distortion display • Hours run counter
                                                  • Demand, Min and Max records  • VT ratio for medium voltage applications
                                                  • Fully isolated RS-485 serial port  • Front panel programming
                                                  • MODBUS-RTU communications  • Wide operating temperature range
                                                  • Programmable relay output  • 2 part connectors
                                                  • Energy pulse output capability



       DC Enegy Analyser



                                                  DKM-250

                                                  DC ENERGY ANALYZER & EARTH LEAKAGE DETECTOR

                                                  The DKM-250 is a precision instrument designed for measuring,
                                                  displaying and remote monitoring earth leakage and various
                                                  DC parameters in a DC distribution box.




                                                  FEATURES

                                                  • Displays earth leakage in %   • Bidirectional current & power measurement
                                                   • Various current input options   • Bidirectional kW-h energy counter
                                                   • 2 programmable relay outputs   • Bidirectional A-h counter
                                                   • 2 programmable digital inputs   • Hours run counter
                                                   • Programmable 4-20mA analog output   • Front panel programming
                                                   • Demand, Min & Max records    • Wide operating temperature range
                                                   • Fully isolated RS-485 serial port   • Sealed front panel (IP65 with gasket)
                                                   • MODBUS-RTU communications    • Two part connection system
