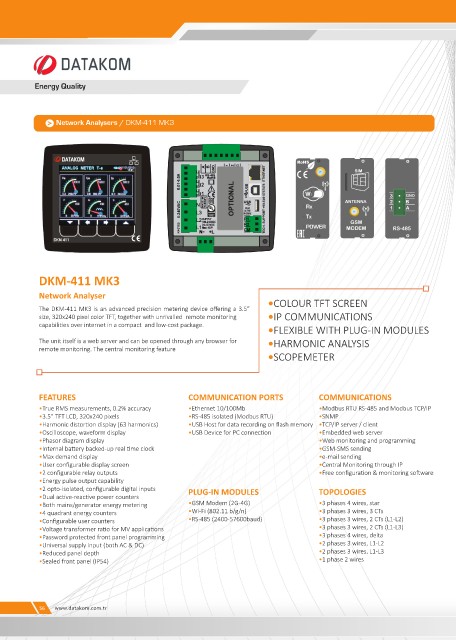

P. 56

Energy Quality




                Network Analysers / DKM-411 MK3












                                                                                   Rx
                                                                                   Tx
                                                                                   POWER






            DKM-411 MK3
            Network Analyser

            The DKM-411 MK3 is an advanced precision metering device offering a 3.5”   •COLOUR TFT SCREEN
            size, 320x240 pixel color TFT, together with unrivalled  remote monitoring   •IP COMMUNICATIONS
            capabilities over internet in a compact  and low-cost package.
                                                                         •FLEXIBLE WITH PLUG-IN MODULES
            The unit itself is a web server and can be opened through any browser for   •HARMONIC ANALYSIS
            remote monitoring. The central monitoring feature
                                                                         •SCOPEMETER





            FEATURES                                COMMUNICATION PORTS                COMMUNICATIONS
            •True RMS measurements, 0.2% accuracy   •Ethernet 10/100Mb                 •Modbus RTU RS-485 and Modbus TCP/IP
            •3.5” TFT LCD, 320x240 pixels           •RS-485 isolated (Modbus RTU)      •SNMP
            •Harmonic distortion display (63 harmonics)  •USB Host for data recording on flash memory  •TCP/IP server / client
            •Oscilloscope, waveform display         •USB Device for PC connection      •Embedded web server
            •Phasor diagram display                                                    •Web monitoring and programming
            •Internal battery backed-up real time clock                                •GSM-SMS sending
            •Max demand display                                                        •e-mail sending
            •User configurable display screen                                          •Central Monitoring through IP
            •2 configurable relay outputs                                              •Free configuration & monitoring software
            •Energy pulse output capability
            •2 opto-isolated, configurable digital inputs  PLUG-IN MODULES             TOPOLOGIES
            •Dual active-reactive power counters
            •Both mains/generator energy metering   •GSM Modem (2G-4G)                 •3 phases 4 wires, star
            •4 quadrant energy counters             •Wi-Fi (802.11 b/g/n)              •3 phases 3 wires, 3 CTs
            •Configurable user counters             •RS-485 (2400-57600baud)           •3 phases 3 wires, 2 CTs (L1-L2)
            •Voltage transformer ratio for MV applications                             •3 phases 3 wires, 2 CTs (L1-L3)
            •Password protected front panel programming                                •3 phases 4 wires, delta
            •Universal supply input (both AC & DC)                                     •2 phases 3 wires, L1-L2
            •Reduced panel depth                                                       •2 phases 3 wires, L1-L3
            •Sealed front panel (IP54)                                                 •1 phase 2 wires
